this model has two independent expanding clamps, allowing coaxial alignment of two hollow cylindrical components of different diameters.

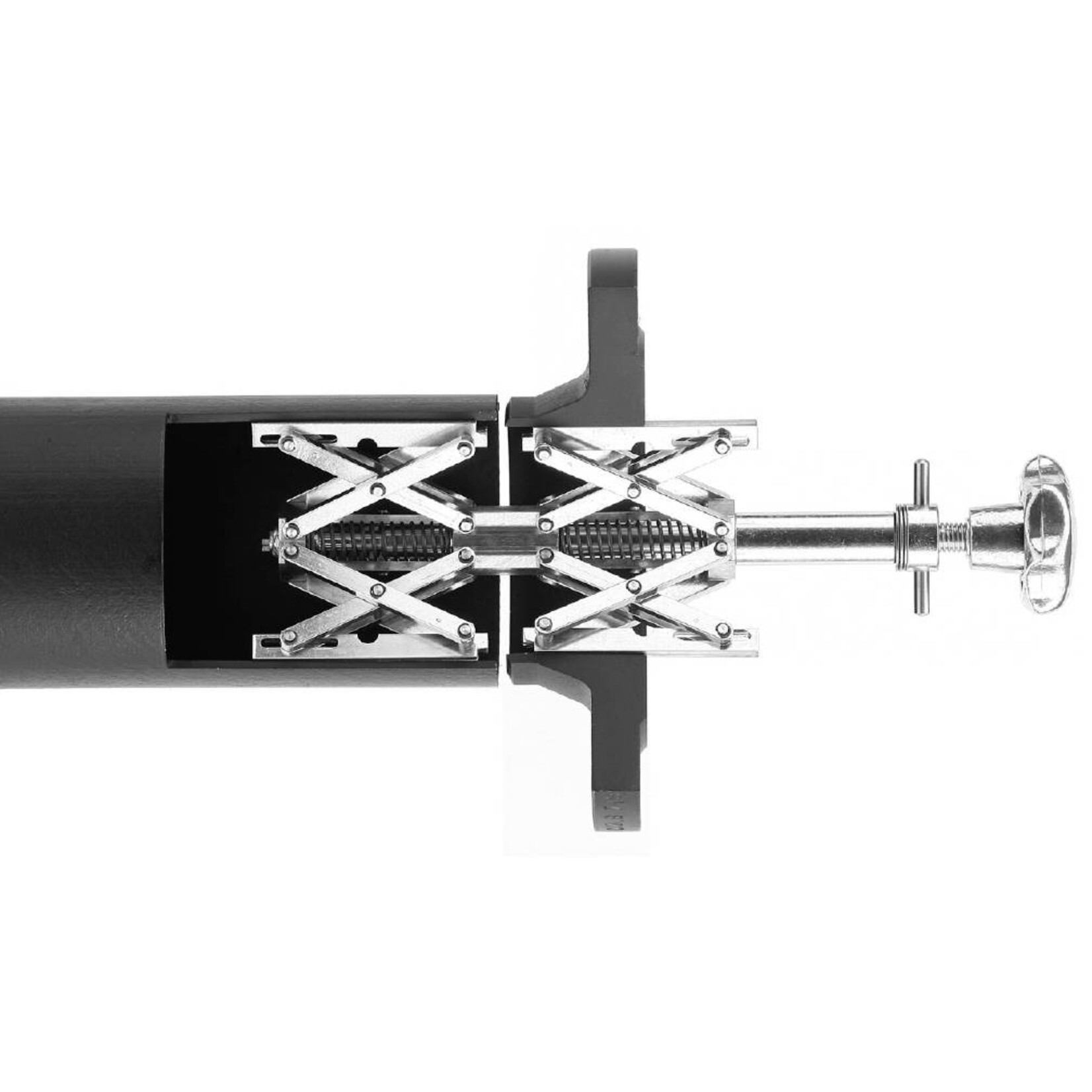

this model has two independent expanding clamps, allowing coaxial alignment of two hollow cylindrical components of different diameters. The bottom expanding clamp is inserted and clamped in the pipe by means of the knob. Then the other part (e.g. a flange) is placed over the top expanding clamp and clamped by means of the hand-bar. Compared with model 3a. This model is specially suited for heavy parts. Automatic diameter compensation.
To avoid electrolytic corrosion, we supply the versions with support rails made of stainless steel (VA 1.4301).
Please note: The size 1/e 54 - 140 mm is not available at the moment. As an alternative we can supply the type 3A - 54 - 140 mm from stock.
| Clamping range | Weight | ||
| Größe 1/e | 54 - 140 mm | 1,30 kg | |
| Größe 2/e | 85 - 220 mm | 3,90 kg | |
| Größe 3/e | 120 - 350 mm | 11,50 kg | |
| Größe 4/e | 180 - 520 mm | 27,00 kg | |

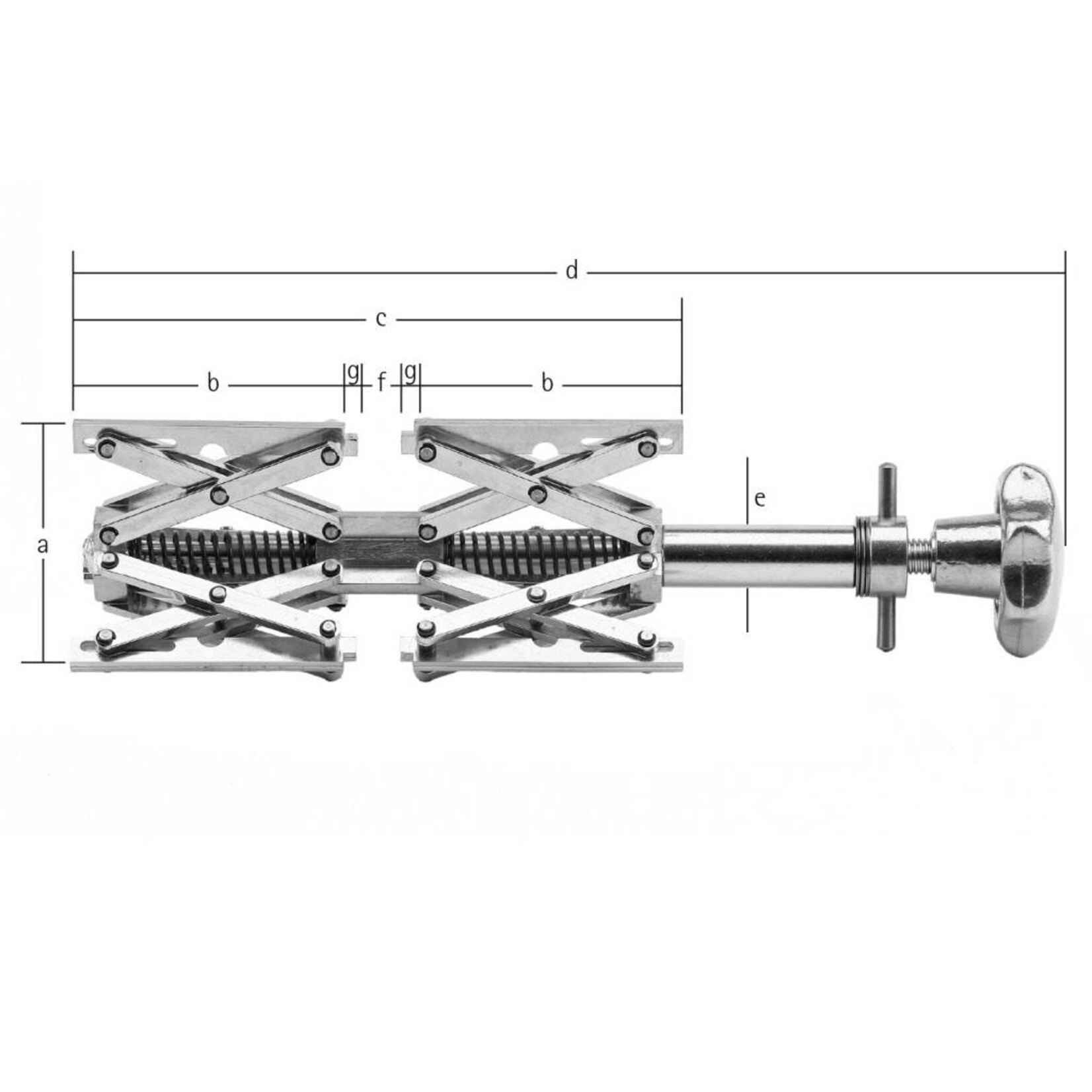

| Size 1/e | Size 2/e | Size 3/e | Size 4/e | ||
| a) | 54 - 140 mm | 85 - 220 mm | 120 - 350 mm | 180 - 520 mm | |
| b) | 88 mm | 144 mm | 233 mm | 300 mm | |
| c) | 190 mm | 309 mm | 491 mm | 636 mm | |
| d) | 290 - 310 mm | 445 - 505 mm | 745 - 790 mm | 850 - 960 mm | |
| e) | 20 mm | 26 mm | 34 mm | 36 mm | |
| f) | 14 mm | 21 mm | 25 mm | 36 mm | |
| g) | 4 mm | 5 mm | 6 mm | 8 mm | |
