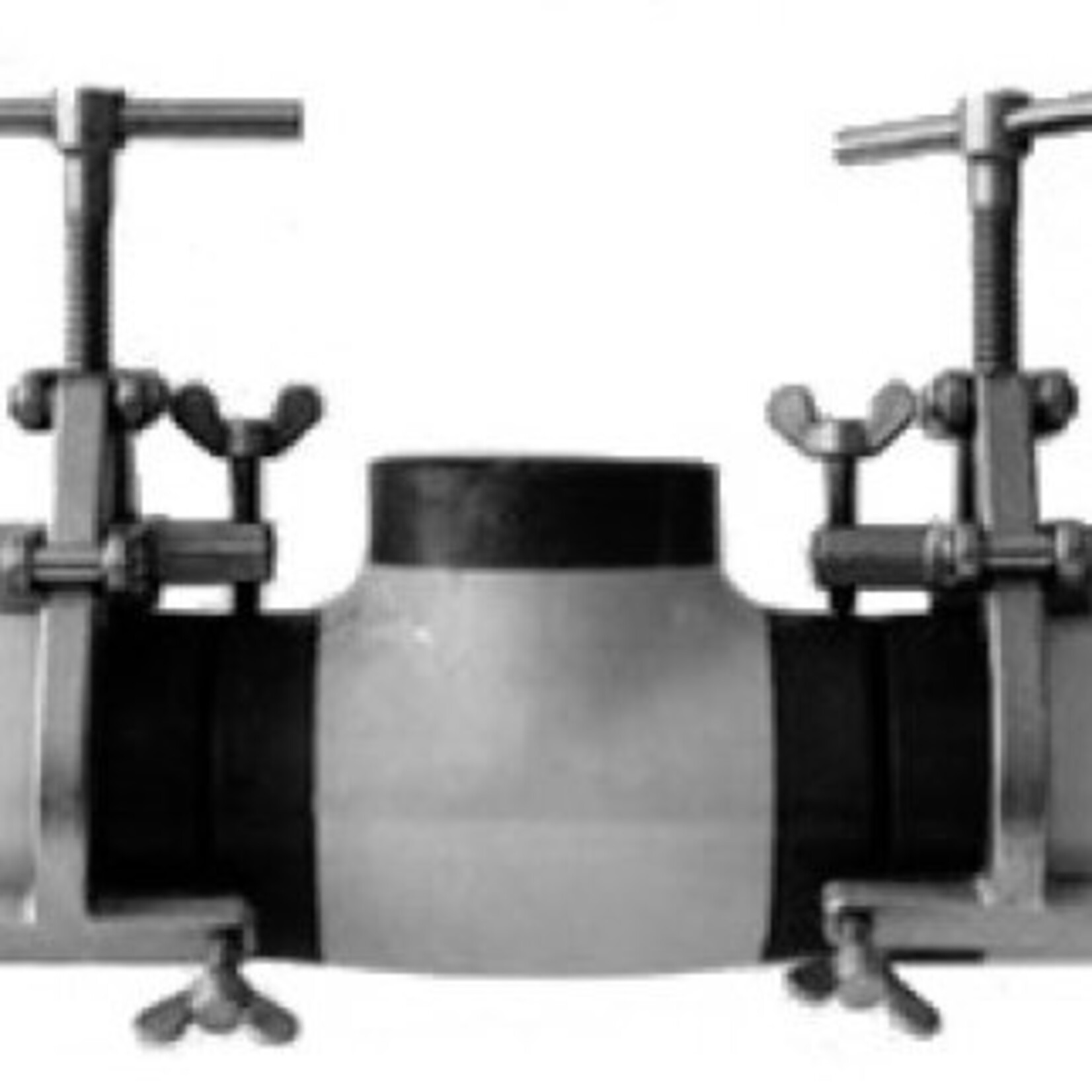

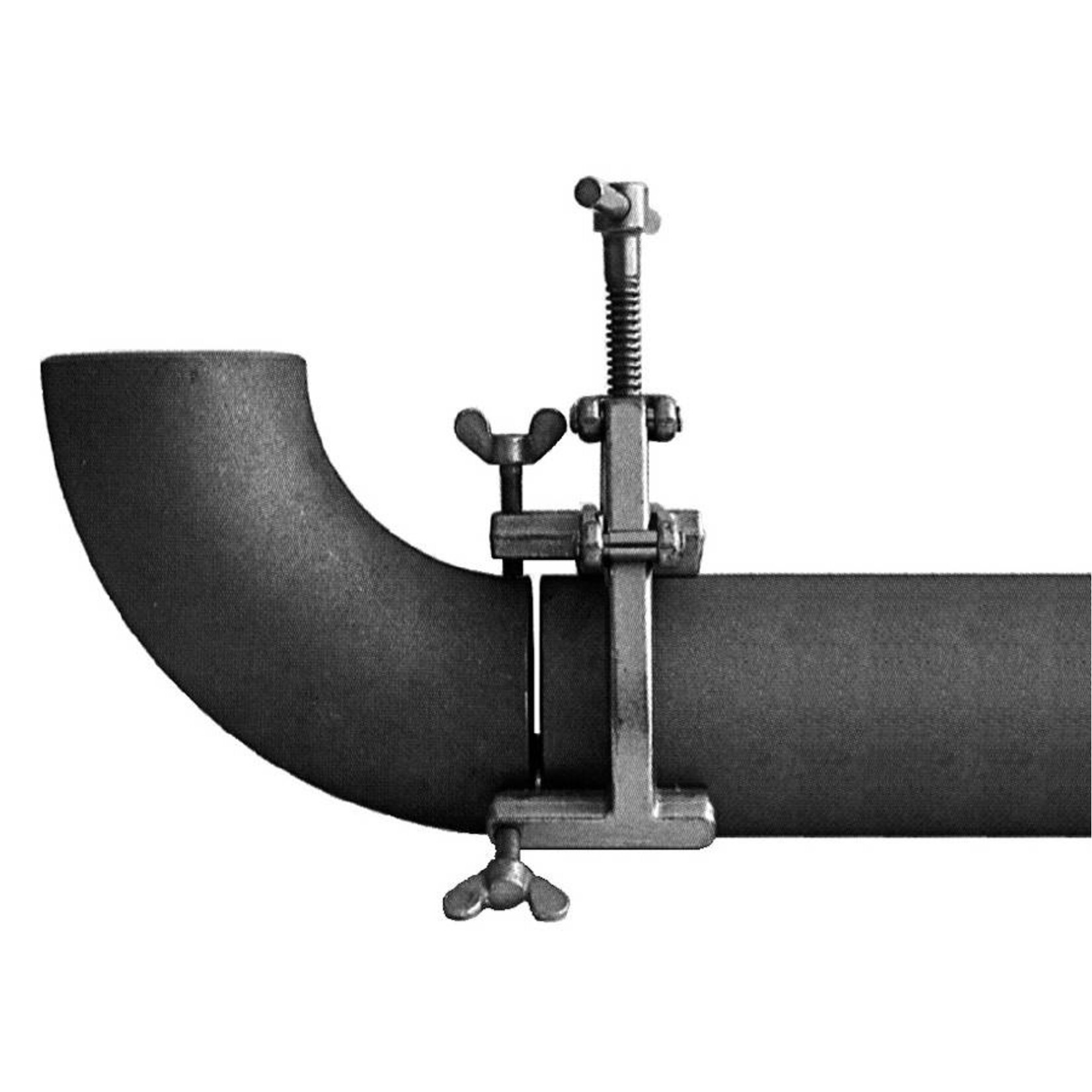

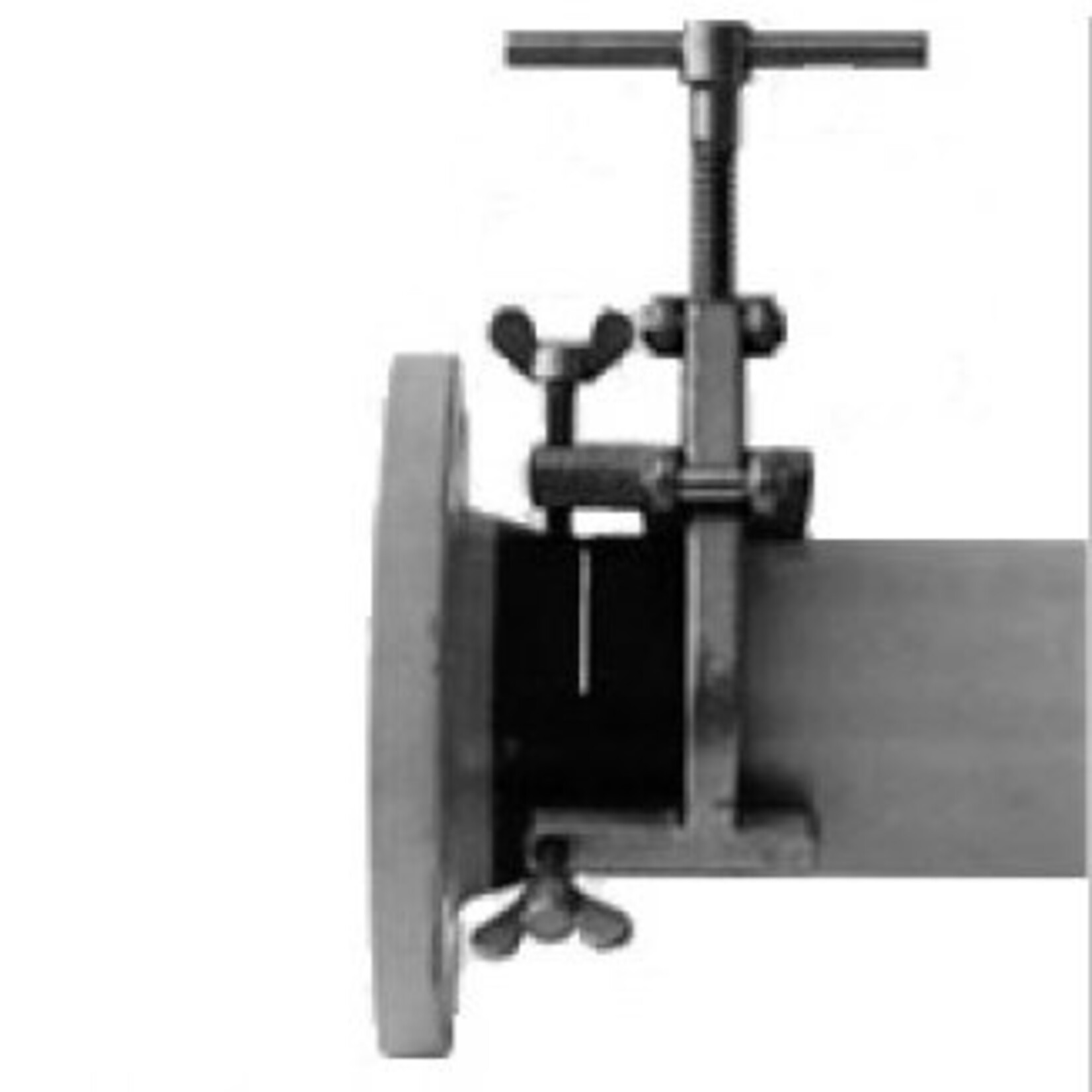

for exact centering and clamping of pipes without restriction in length. Also for curved tubes, flanges, T-shaped and other parts to pipes.
for exact centering and clamping of pipes without restriction in length. Also for curved tubes, flanges, T-shaped and other parts to pipes. The assembly of pipe-systems can be practised by only one pipefitter. Welding parts are accessible from all directions. Microadjustment device by wing-screw. To avoid corrosion we recommend stainless steel type.
In order to prevent electrolytic corrosion, we recommend the stainless steel versions.
Application video External Quick Alignment Clamps
| Size | Clamping range | Weight | ||
| A | 20 - 90 mm | 1,40 kg | ||
| B | 50 - 150 mm | 3,00 kg | ||
| C | 90 - 190 mm | 3,30 kg | ||
| D | 125 - 225 mm | 6,80 kg | ||
| E | 225 - 370 mm | 8,65 kg | ||
