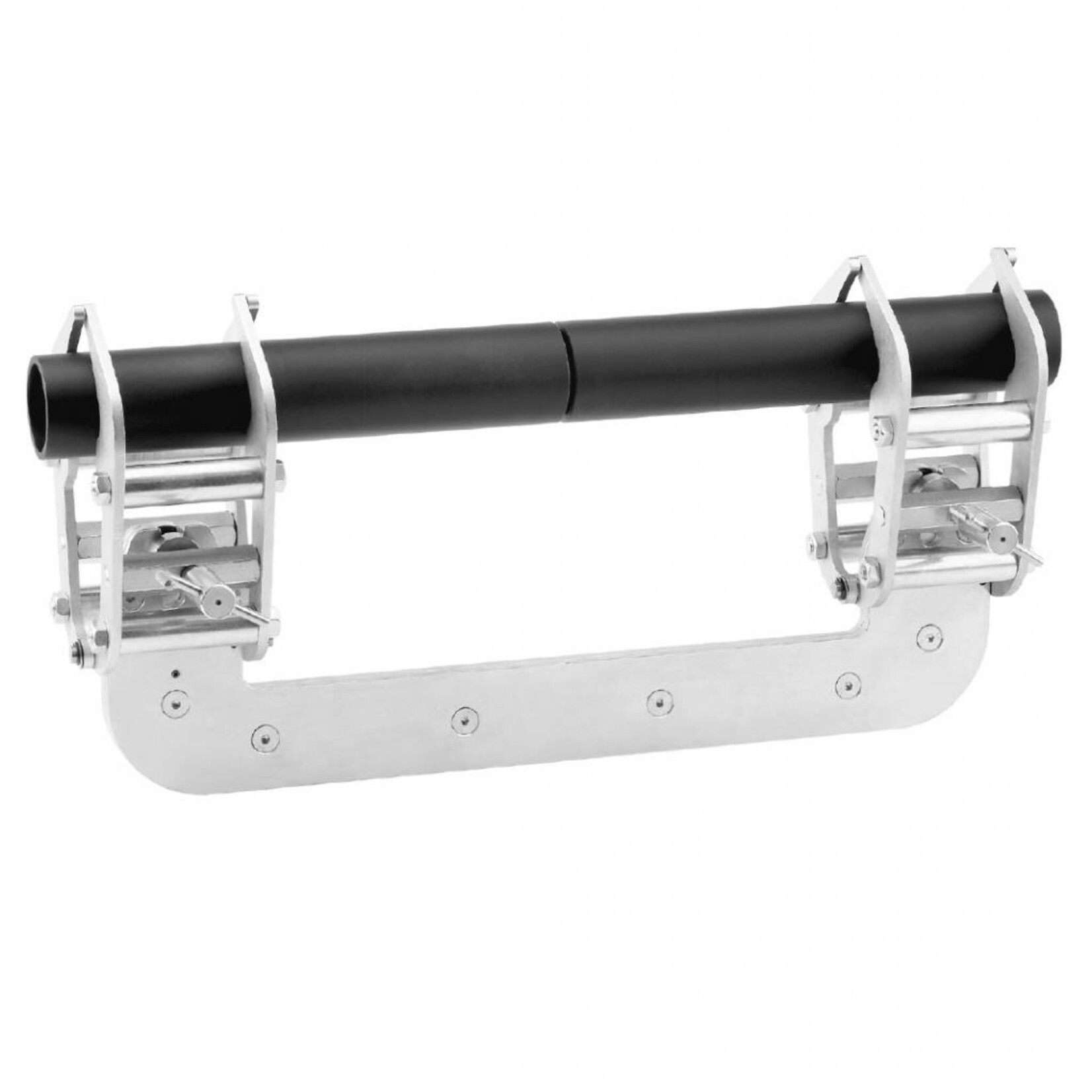

To relieve the welding machine during orbital welding we recommend the type 1a-Orbital. Fast, safe and accurate centring and clamping of pipes, shafts and round bars right from the start
To relieve pressure from a welding unit during orbital welding, we recommend type 1a-Orbital. For quick and accurate alignment of pipes ofequal or differing diameters on a common center line. Automatic diameter compensation. There‘s no need to make additional adjustments. All part stay easily accessible for welding.
To avoid electrolytic corrosion, we supply the versions with support rails made of stainless steel (VA 1.4301).
| Size 1 | Size 2 | Size 3 | ||
| Spannbereich | 6 - 50 mm | 10 - 70 mm | 25 - 140 mm | |
| Gewicht | 3,60 kg | 5,70 kg | 12,60 kg | |
| Size 1 | Size 2 | Size 3 | ||||||
| a) | 6 - 50 mm | 10 - 70 mm | 25 - 140 mm | |||||
| b) | 225 mm | 400 mm | 590 mm | |||||
| c) | 175 mm | 235 mm | 290 mm | |||||
| d) | 240 mm | 387 mm | 570 mm | |||||
| e) | 98 mm | 243 mm | 360 mm | |||||
| f) | 71,5 mm | 71,5 mm | 106 mm | |||||
| g) | 110 mm | 160 mm | 170 mm | |||||
