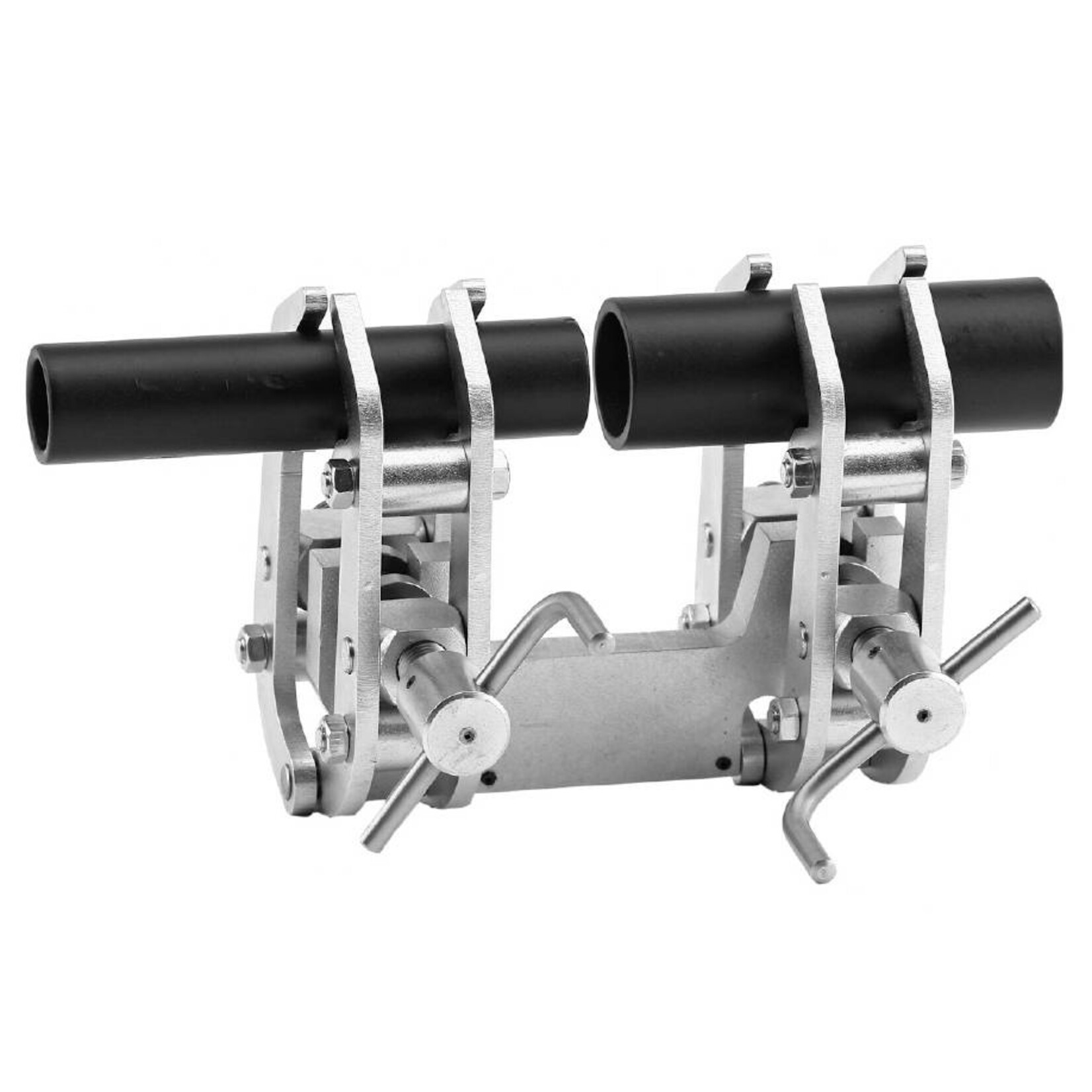

External Alignment Clamps for quick and accurate alignment of pipes of equal or differing diameters on a common center line
for quick and accurate alignment of pipes of equal or differing diameters on a common center line. Automatic diameter compensation. There‘s no need to make additional adjustments. All part stay easily accessible for welding. To avoid electrolytic corrosion, we supply the versions with stainless steel supports (VA 12CrNi177 1.4310).
| Size A | Size B | Size C | |
| Spannbereich | 10 - 70 mm | 40 - 140 mm | 75 - 330 mm |
| Gewicht | 2,00 kg | 5,30 kg | 26,00 kg |

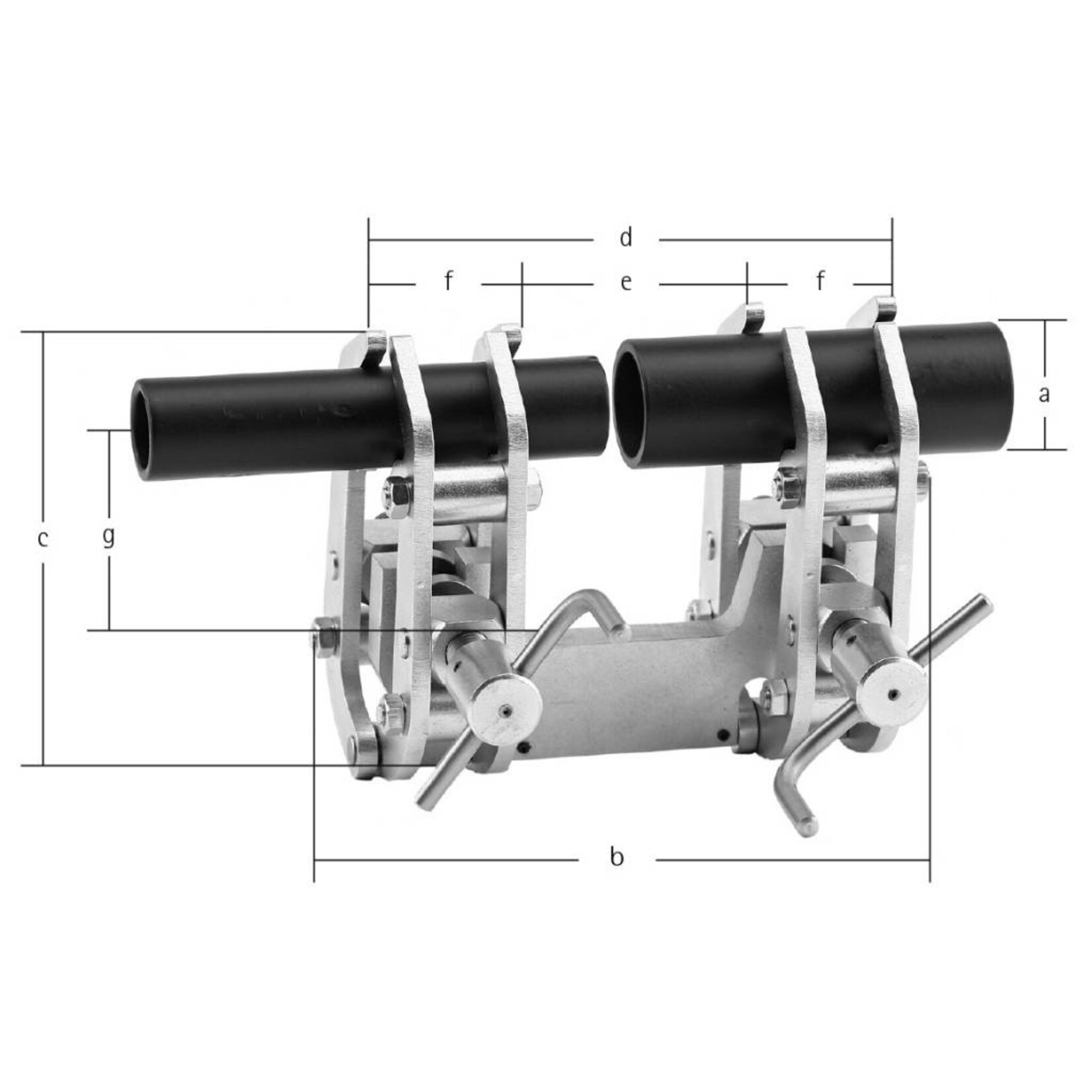

| Size A | Size B | Size C | ||||||
| a) | 10 - 70 mm | a) | 40 - 140 mm | a) | 75 - 330 mm | |||
| b) | 160 mm | b) | 210 mm | b) | 360 mm | |||
| c) | 125 mm | c) | 200 mm | c) | 400 mm | |||
| d) | 140 mm | d) | 190 mm | d) | 350 mm | |||
| e) | 57 mm | e) | 82 mm | e) | 115 mm | |||
| f) | 41 mm | f) | 55 mm | f) | 115 mm | |||
| g) | 65 mm | g) | 95 mm | g) | 235 mm | |||
